Grub screw, hex socket, M6 x 20 Din 913 | VW T1 Bus, T2 Bus, Beetle, KG, T3 Bus, Type 3, Type 181 | N 014 542 1
€1,09
Skip to product information
Out of stock
Grub screw, hex socket, M6 x 20 Din 913 | VW T1 Bus, T2 Bus, Beetle, KG, T3 Bus, Type 3, Type 181 | N 014 542 1
€1,09
Grub screw, hex socket, M6 x 20 Din 913 | VW T1 Bus, T2 Bus, Beetle, KG, T3 Bus, Type 3, Type 181 | N 014 542 1

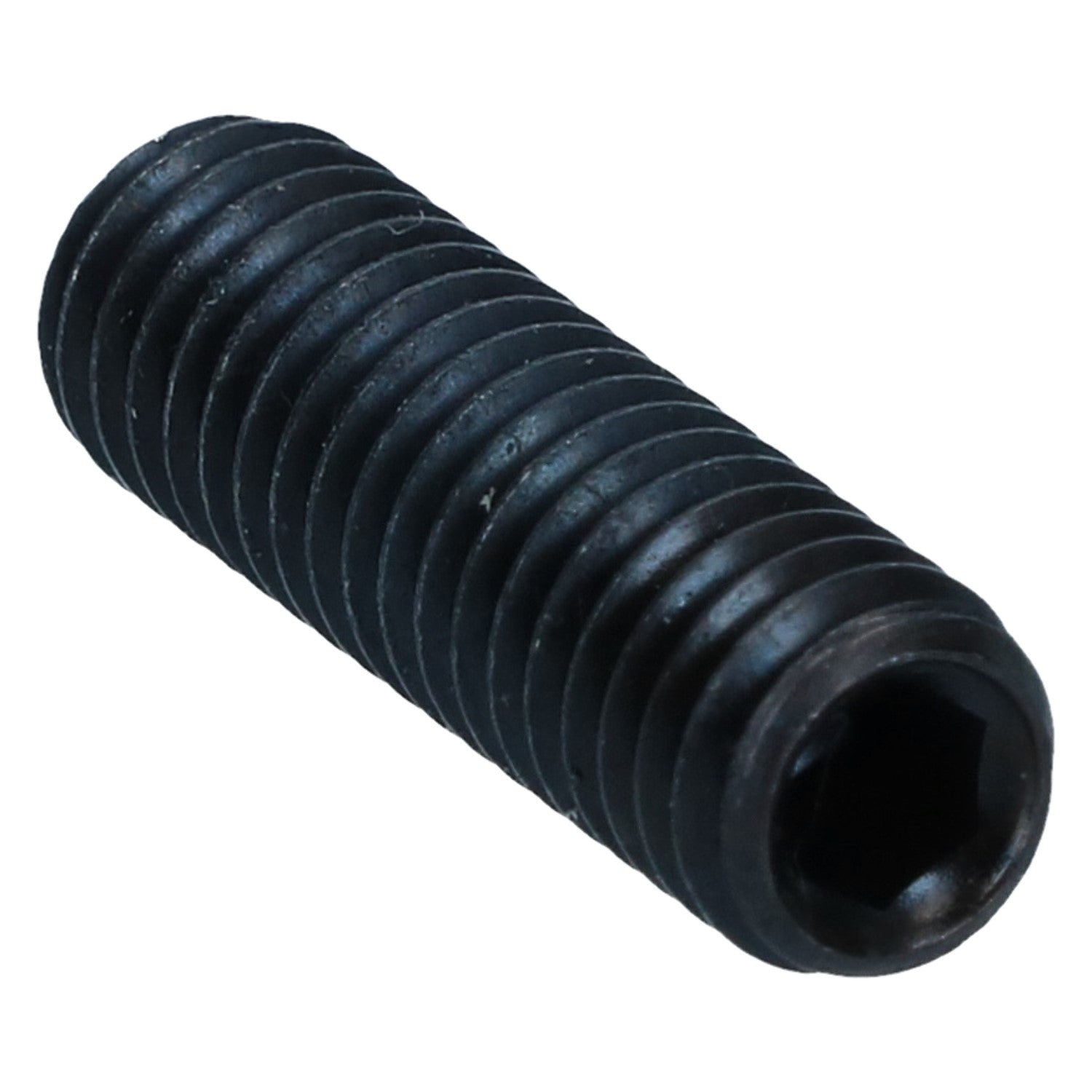

Set screw with internal hex M6 x 20 according to DIN 913, with OEM number N 014 542 1. Suitable for the VW T1 Bus, T2 Bus, Beetle and Karmann Ghia and is used at various mounting points in the engine and body. The set screw has a countersunk hex socket and a flat end.
Please note
This stud is used, among other things, to secure the oil sump plate on the type 1 engine. Often the thread at the end of these studs is damaged by over-tightening of the nuts and the best solution is to replace them with new ones. Thanks to the Allen key, this stud is very easy to install, but we recommend using a thread sealant to ensure that it does not come out of the crankcase when unscrewing the nuts. For 25-30 HP, 6 are used, for the later type 1 engines you’ll need 5 + 1 longer one (BBT 8721-06-035). The latter is longer because it also secures the oil suction tube in the crankcase
Features
- ✓Size M6 x 20 mm, to be fitted with an Allen key
- ✓For Type1 engines: 6 pieces at 25-30hp, 5 + 1 longer on later versions
- ✓Recommended: use thread locker to prevent it from falling out when loosening
- ✓OEM comparison: N 014 542 1
Technical specifications
| Application | VW T1 Bus, VW T2 Bus, VW Beetle, VW Karmann Ghia, VW T3 Bus, VW Type 3, VW Type 181 |
| OEM reference number | N 014 542 1 |
| Brand |
 BBT
|
Important to know before you order
Always have parts fitted by a qualified professional. Installation and fitting of our parts must always be carried out by a qualified, competent mechanic. Parts may be supplied without a separate fitting manual — professional installation remains required regardless.
Always check beforehand. Before fitting a part, check it for visible damage or deviating dimensions/specifications. If in doubt, do not fit the part and contact us instead.
Does it fit your vehicle? Our parts are developed for the specifically listed models and applications. Verifying this beforehand is your own responsibility, for example via chassis number, year of manufacture, or manufacturer details.
Laws and regulations. Check that the chosen part meets the vehicle manufacturer's requirements as well as the legal regulations applicable in your country, including any applicable inspection standards.
Liability. Damage or unsafe situations arising from installation by unqualified personnel or incorrect use fall outside our liability.
Returns. Parts that have already been fitted, installed, or used unfortunately cannot be returned.
By ordering and fitting a part, you confirm that you have read and accepted these terms.
